VXB-1EVAD – EN54-23 Approved Visual Alarm Device
Features
Description
The VXB wall VAD beacons provide the visual notification that is required to facilitate evacuation in loud environments and for the hard of hearing.
Designed for use in conventional fire alarm systems, the wall versions direct light to the floor.
Available in white or red body colours alongside white and red flash options for wall mounting via a unique twist and lock bayonet system.

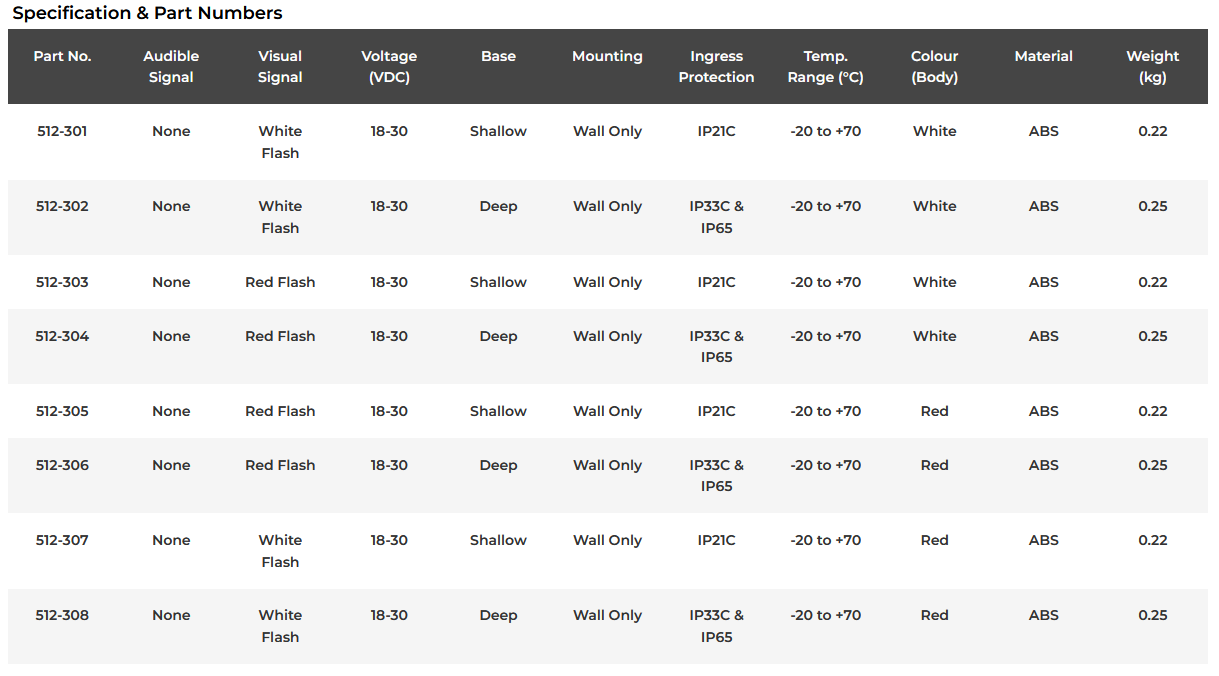

Specification & Part Numbers
Part No.
Audible Signal
Visual Signal
Voltage (VDC)
Base
Mounting
Ingress Protection
Temp. Range (°C)
Colour (Body)
Material
Weight (kg)
512-301
None
White Flash
18-30
Shallow
Wall Only
IP21C
-20 to +70
White
ABS
0.22
512-302
None
White Flash
18-30
Deep
Wall Only
IP33C & IP65
-20 to +70
White
ABS
0.25
512-303
None
Red Flash
18-30
Shallow
Wall Only
IP21C
-20 to +70
White
ABS
0.22
512-304
None
Red Flash
18-30
Deep
Wall Only
IP33C & IP65
-20 to +70
White
ABS
0.25
512-305
None
Red Flash
18-30
Shallow
Wall Only
IP21C
-20 to +70
Red
ABS
0.22
512-306
None
Red Flash
18-30
Deep
Wall Only
IP33C & IP65
-20 to +70
Red
ABS
0.25
512-307
None
White Flash
18-30
Shallow
Wall Only
IP21C
-20 to +70
Red
ABS
0.22
512-308
None
White Flash
18-30
Deep
Wall Only
IP33C & IP65
-20 to +70
Red
ABS
0.25
Dimensions
Downloads
Accessories
Part Numbers
116-143
Description
BS 5839-1 and other standards require visual signals that form part of the fire system to be clearly distinguishable from other signals.
A label, that is legible when stood on the floor, with the word ‘FIRE’ is often used to distinguish visual alarms. The Cranford base labels fit the VTG, VXB and VTB products via the same mounting screws as the main product.
