Voice Sounders

VocAlarm – Voice Enhanced Sounders

Features

  • Based on the EN54-3 approved VTG sounder
  • All messages are stored on a Micro SD card, requiring no separate control system
  • Each device offers the ability to select from 32 digitised speech messages during install
  • Switching to a second alarm tone is possible when installed using 3 core cable, enabling ‘Alert’ and ‘Evacuate’ instructions
  • Detector base sounder and sounder/beacon variants available

Description

The VCL range of voice enhanced sounders provides a cost effective and simple to install solution where the reassurance of voice messages is required.

Designs are based on the VTG open area sounder creating a mechanically and electrically interchangeable solution for retrofit applications.

Customised messages and languages options are available through factory configuration. Contact Cranford for support on establishing custom voice alarm products.

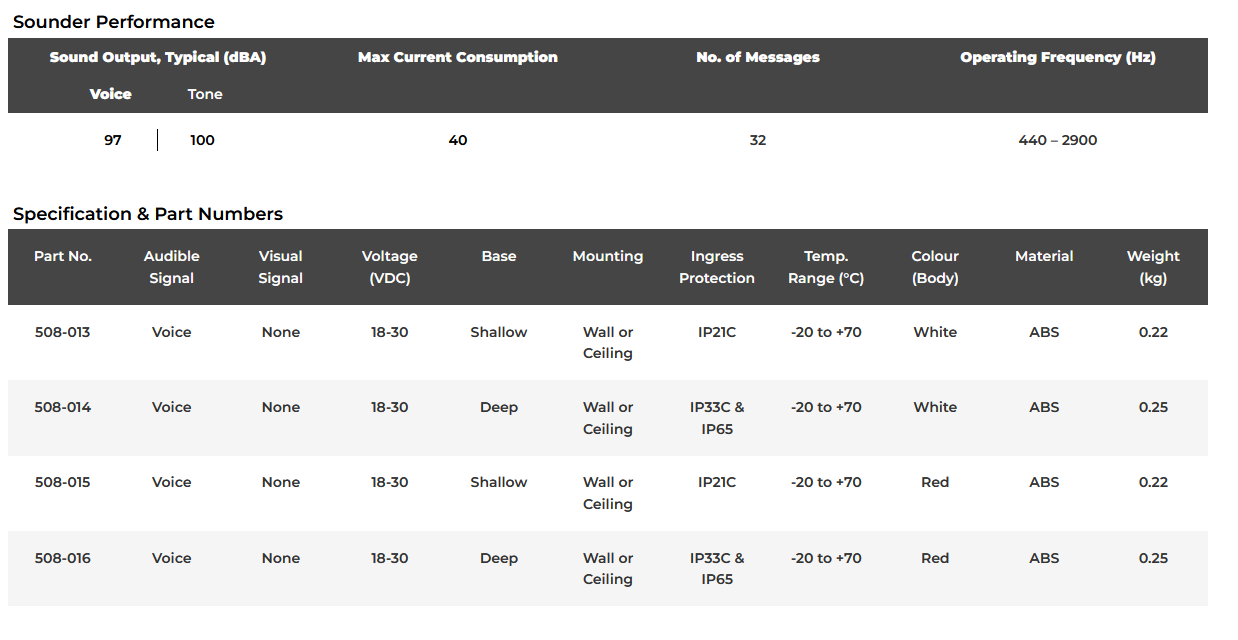

 Sounder Performance

Sound Output, Typical (dBA)
Max Current Consumption
No. of Messages
Operating Frequency (Hz)
Voice
Tone
97
100
40
32
440 – 2900

 Specification & Part Numbers

Part No.
Audible Signal
Visual Signal
Voltage (VDC)
Base
Mounting
Ingress Protection
Temp. Range (°C)
Colour (Body)
Material
Weight (kg)
508-013
Voice
None
18-30
Shallow
Wall or Ceiling
IP21C
-20 to +70
White
ABS
0.22
508-014
Voice
None
18-30
Deep
Wall or Ceiling
IP33C & IP65
-20 to +70
White
ABS
0.25
508-015
Voice
None
18-30
Shallow
Wall or Ceiling
IP21C
-20 to +70
Red
ABS
0.22
508-016
Voice
None
18-30
Deep
Wall or Ceiling
IP33C & IP65
-20 to +70
Red
ABS
0.25
Voc Sounders

 Dimensions

Downloads

Datasheet
Installation Guide
Approvals

 Accessories

Mains Base

Part Numbers

510-120 (Red)

510-121 (White)

Description

The 24VDC VTG, VXB and VTB products can be fitted to a deep ‘mains base’ variant that includes a transformer to allow for direct installation in 110VAC and 230VAC systems.
