Remote Indicators

RIU – Remote Indicator Units

Features

  • Available as a flush mount unit or surface mount with back box included
  • Direct fit to a single gang deep back box
  • Text available in other languages e.g. “Brandalarm” for Dutch systems
  • Weatherproof versions also available on request for outdoor applications

Description

Remote indications provide the status of a single or groups of fire detectors to fire marshals and firefighters.

Indication is provided via an LED with a wide area of illumination and high on/off contrast. The standard version is a single gang unit with ‘Fire Detector Operated’ text.

Blank and alternative text versions are available on request for a variety of fire, security and process control applications.

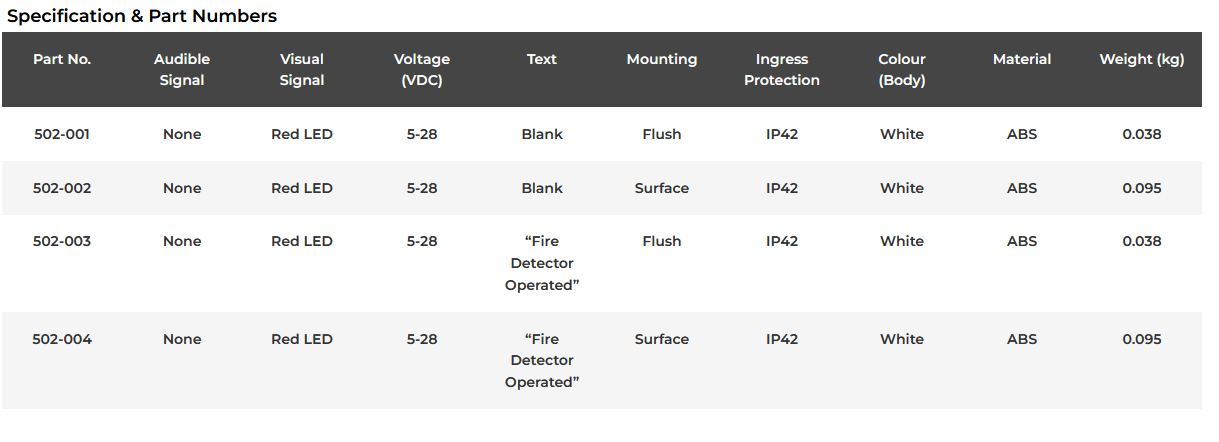

 Specification & Part Numbers

Part No.
Audible Signal
Visual Signal
Voltage (VDC)
Text
Mounting
Ingress Protection
Colour (Body)
Material
Weight (kg)
502-001
None
Red LED
5-28
Blank
Flush
IP42
White
ABS
0.038
502-002
None
Red LED
5-28
Blank
Surface
IP42
White
ABS
0.095
502-003
None
Red LED
5-28
“Fire Detector Operated”
Flush
IP42
White
ABS
0.038
502-004
None
Red LED
5-28
“Fire Detector Operated”
Surface
IP42
White
ABS
0.095
Remote Indicators

 Dimensions

Downloads

Datasheet
Installation Guide
Approvals
