Marine Approved Sounders

Marine Equipment Directive (MED) & American Bureau of Shipping (ABS) Approved Sounders

Features

  • Products have undergone additional EMC, vibration and salt mist testing for use in maritime industry
  • Selectable sounder tones include “Marine General Alarm” and the International Marine Organisation “Code 2 Continuous” signals
  • When installed with a three-core cable, the third wire can change tones from “Alert” to “Evacuation”

Description

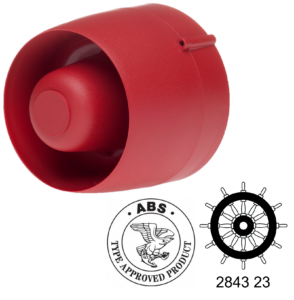

The VTG EN54-3 approved sounder has undergone additional development to meet the needs of the harsh environments in marine applications.

Marine variants come with 32 sounder tones that include the most common sound patterns and two marine specific tones.

Available in white or red options that can be ceiling or wall mounted via a unique twist and lock bayonet system.

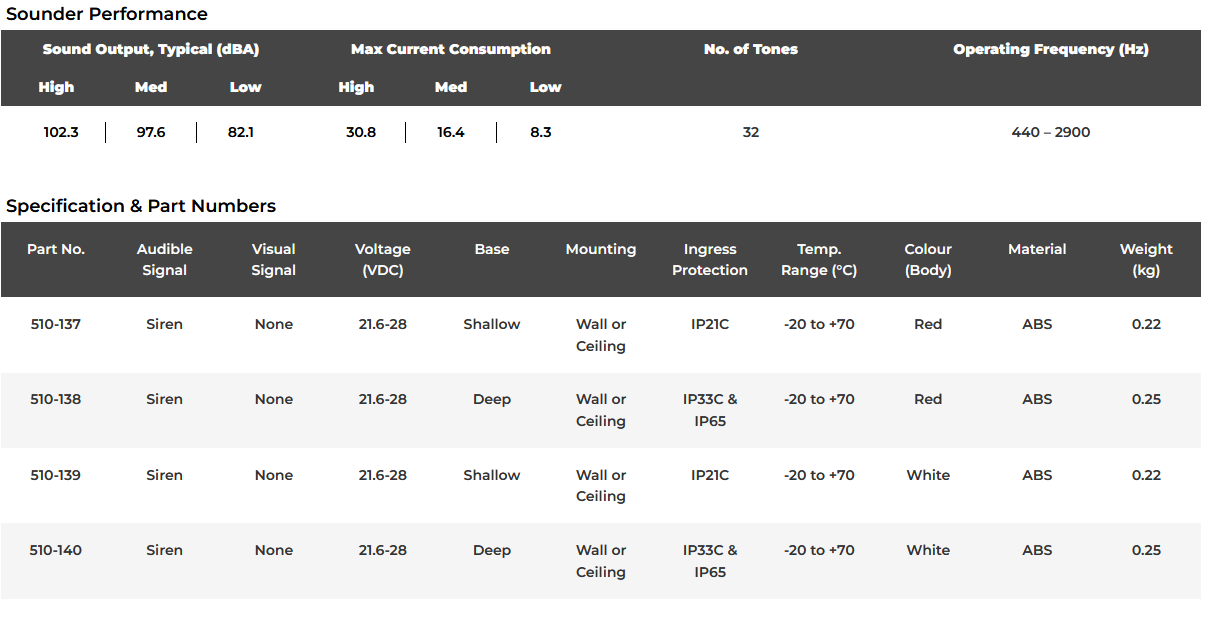

 Sounder Performance

Sound Output, Typical (dBA)
Max Current Consumption
No. of Tones
Operating Frequency (Hz)
High
Med
Low
High
Med
Low
102.3
97.6
82.1
30.8
16.4
8.3
32
440 – 2900

 Specification & Part Numbers

Part No.
Audible Signal
Visual Signal
Voltage (VDC)
Base
Mounting
Ingress Protection
Temp. Range (°C)
Colour (Body)
Material
Weight (kg)
510-137
Siren
None
21.6-28
Shallow
Wall or Ceiling
IP21C
-20 to +70
Red
ABS
0.22
510-138
Siren
None
21.6-28
Deep
Wall or Ceiling
IP33C & IP65
-20 to +70
Red
ABS
0.25
510-139
Siren
None
21.6-28
Shallow
Wall or Ceiling
IP21C
-20 to +70
White
ABS
0.22
510-140
Siren
None
21.6-28
Deep
Wall or Ceiling
IP33C & IP65
-20 to +70
White
ABS
0.25

 Dimensions

Downloads

Datasheet
Installation Guide

 Accessories

Mains Base

Part Numbers

510-120 (Red)

510-121 (White)

Description

The 24VDC VTG, VXB and VTB products can be fitted to a deep ‘mains base’ variant that includes a transformer to allow for direct installation in 110VAC and 230VAC systems.
