Marine Equipment Directive (MED) & American Bureau of Shipping (ABS) Approved Sounder/Beacons

Features

  • Products have undergone additional EMC, vibration and salt mist testing for use in the maritime industry
  • One device with approved sounder function and energy efficient visual indication
  • Selectable sounder tones include “Marine General Alarm” and the International Marine Organisation “Code 2 Continuous” signals

Description

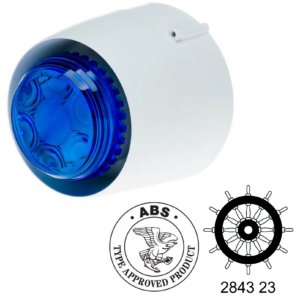

The VTB EN54-3 approved sounder/beacon has undergone additional development to meet the needs of the harsh environments in marine applications.

Marine variants come with 32 sounder tones that include the most common sound patterns and two marine specific tones.

Available in white or red body colour alongside a range of lens colours.

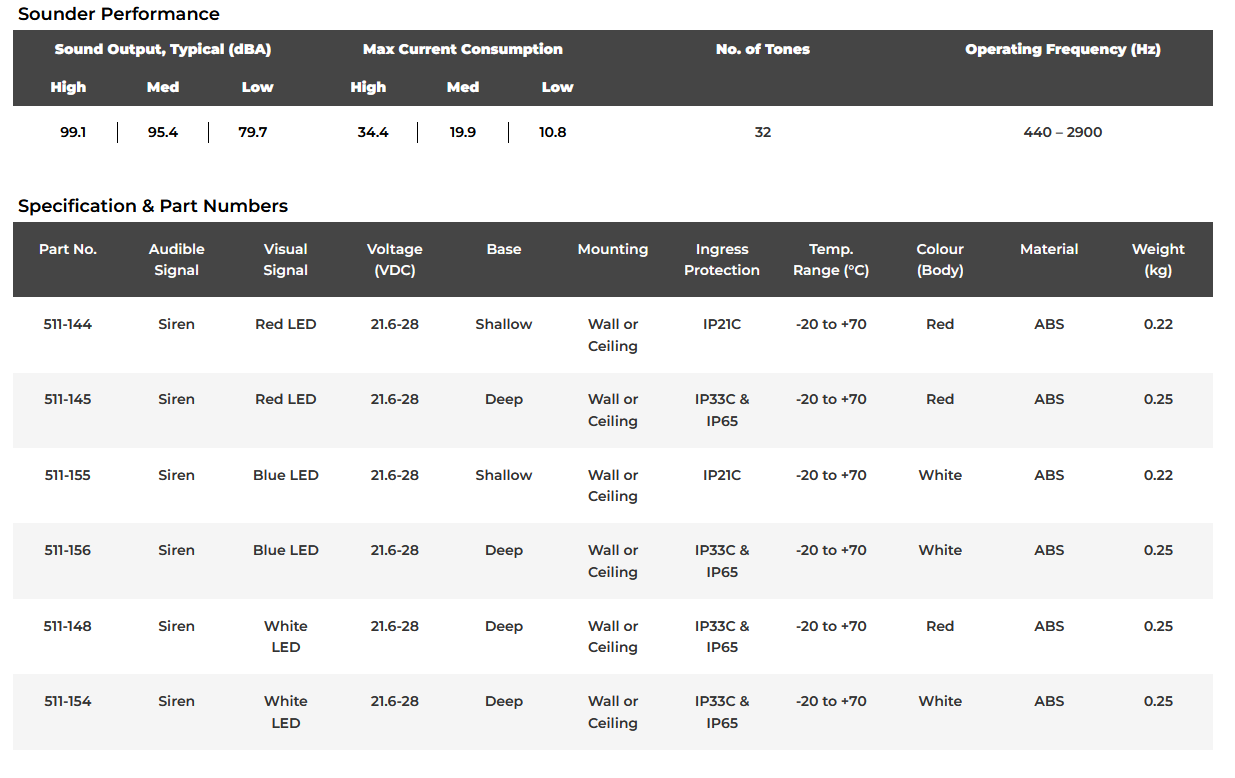

 Sounder Performance

Sound Output, Typical (dBA)
Max Current Consumption
No. of Tones
Operating Frequency (Hz)
High
Med
Low
High
Med
Low
99.1
95.4
79.7
34.4
19.9
10.8
32
440 – 2900

 Specification & Part Numbers

Part No.
Audible Signal
Visual Signal
Voltage (VDC)
Base
Mounting
Ingress Protection
Temp. Range (°C)
Colour (Body)
Material
Weight (kg)
511-144
Siren
Red LED
21.6-28
Shallow
Wall or Ceiling
IP21C
-20 to +70
Red
ABS
0.22
511-145
Siren
Red LED
21.6-28
Deep
Wall or Ceiling
IP33C & IP65
-20 to +70
Red
ABS
0.25
511-155
Siren
Blue LED
21.6-28
Shallow
Wall or Ceiling
IP21C
-20 to +70
White
ABS
0.22
511-156
Siren
Blue LED
21.6-28
Deep
Wall or Ceiling
IP33C & IP65
-20 to +70
White
ABS
0.25
511-148
Siren
White LED
21.6-28
Deep
Wall or Ceiling
IP33C & IP65
-20 to +70
Red
ABS
0.25
511-154
Siren
White LED
21.6-28
Deep
Wall or Ceiling
IP33C & IP65
-20 to +70
White
ABS
0.25
Marine Approved Sounder Books

 Dimensions

 Accessories

Part Numbers

116-143

Description

BS 5839-1 and other standards require visual signals that form part of the fire system to be clearly distinguishable from other signals.

A label, that is legible when stood on the floor, with the word ‘FIRE’ is often used to distinguish visual alarms. The Cranford base labels fit the VTG, VXB and VTB products via the same mounting screws as the main product.

Part Numbers

510-120 (Red)

510-121 (White)

Description

The 24VDC VTG, VXB and VTB products can be fitted to a deep ‘mains base’ variant that includes a transformer to allow for direct installation in 110VAC and 230VAC systems.
