VXB-1EVAD – EN54-23 Approved Visual Alarm Device

Features

  • Approved to EN54-23 with 1 Hz flash rate
  • Available in red flash (C-3-7) and white flash (C-3-8) options
  • Shallow base IP21C for indoor applications
  • Deep base IP33C & IP65 for surface wiring and outdoor applications
  • 230VAC mains base available as accessory

Description

The VXB ceiling VAD beacons provide the visual notification that is required to facilitate evacuation in loud environments and for the hard of hearing.

Designed for use in conventional fire alarm systems, the ceiling versions create a cylinder of light below the device.

Available in white or red body colours alongside white and red flash options for ceiling mounting via a unique twist and lock bayonet system.

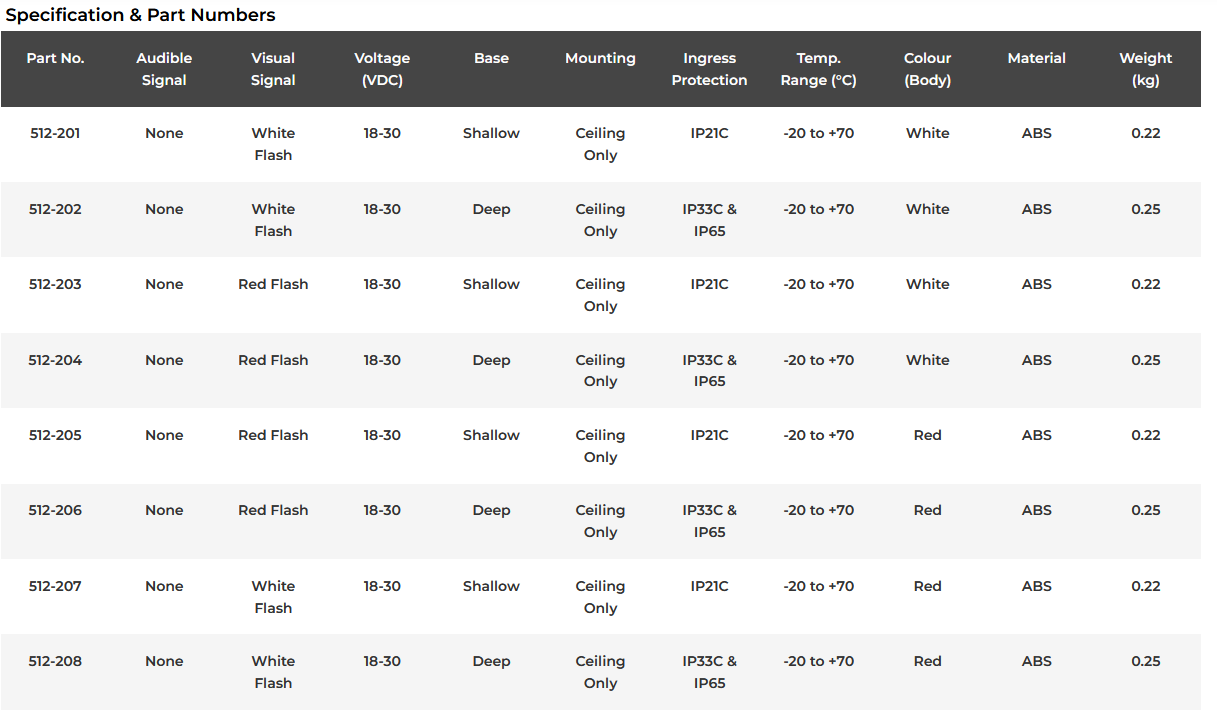

 Specification & Part Numbers

Part No.
Audible Signal
Visual Signal
Voltage (VDC)
Base
Mounting
Ingress Protection
Temp. Range (°C)
Colour (Body)
Material
Weight (kg)
512-201
None
White Flash
18-30
Shallow
Ceiling Only
IP21C
-20 to +70
White
ABS
0.22
512-202
None
White Flash
18-30
Deep
Ceiling Only
IP33C & IP65
-20 to +70
White
ABS
0.25
512-203
None
Red Flash
18-30
Shallow
Ceiling Only
IP21C
-20 to +70
White
ABS
0.22
512-204
None
Red Flash
18-30
Deep
Ceiling Only
IP33C & IP65
-20 to +70
White
ABS
0.25
512-205
None
Red Flash
18-30
Shallow
Ceiling Only
IP21C
-20 to +70
Red
ABS
0.22
512-206
None
Red Flash
18-30
Deep
Ceiling Only
IP33C & IP65
-20 to +70
Red
ABS
0.25
512-207
None
White Flash
18-30
Shallow
Ceiling Only
IP21C
-20 to +70
Red
ABS
0.22
512-208
None
White Flash
18-30
Deep
Ceiling Only
IP33C & IP65
-20 to +70
Red
ABS
0.25
Ceiling Vads

 Accessories

Part Numbers

116-143


Description

BS 5839-1 and other standards require visual signals that form part of the fire system to be clearly distinguishable from other signals.

A label, that is legible when stood on the floor, with the word ‘FIRE’ is often used to distinguish visual alarms. The Cranford base labels fit the VTG, VXB and VTB products via the same mounting screws as the main product.

Part Numbers

510-120 (Red)

510-121 (White)

Description

The 24VDC VTG, VXB and VTB products can be fitted to a deep ‘mains base’ variant that includes a transformer to allow for direct installation in 110VAC and 230VAC systems.
