Auxiliary Relays

R24 & R12 – Auxiliary Relay Units

Features

  • Available in 24V and 12V variants provide two relay outputs for switching field devices
  • 230VAC 5A relay contact rating
  • Supply voltage to the relay coil can be continued through the device using supplied terminals
  • PCB only options can be mounted inside power supplies, panels etc

Description

Auxiliary relay units provide two relay outputs to allow fire systems to switch field devices such as fire door retainers and smoke vents or to shutdown fans.

Indication of relay status is provided via an LED with a wide area of illumination and high on/off contrast. The standard version is a single gang unit with ‘Auxiliary Relay Operated’ text.

Blank and alternative text versions are available on request.

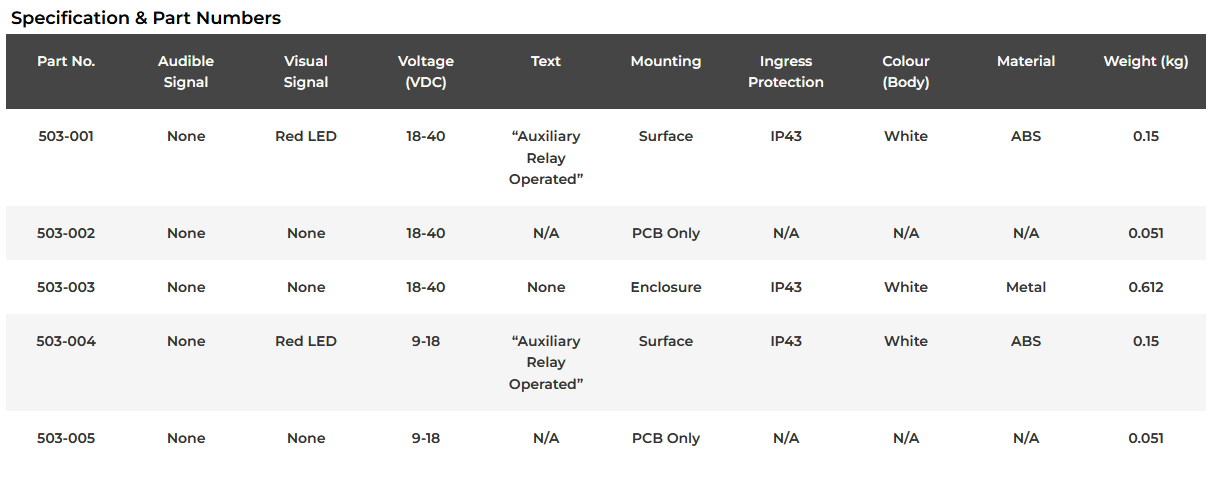

 Specification & Part Numbers

Part No.
Audible Signal
Visual Signal
Voltage (VDC)
Text
Mounting
Ingress Protection
Colour (Body)
Material
Weight (kg)
503-001
None
Red LED
18-40
“Auxiliary Relay Operated”
Surface
IP43
White
ABS
0.15
503-002
None
None
18-40
N/A
PCB Only
N/A
N/A
N/A
0.051
503-003
None
None
18-40
None
Enclosure
IP43
White
Metal
0.612
503-004
None
Red LED
9-18
“Auxiliary Relay Operated”
Surface
IP43
White
ABS
0.15
503-005
None
None
9-18
N/A
PCB Only
N/A
N/A
N/A
0.051
Auxiliary Realay
